Tensile Testing Machines
- >

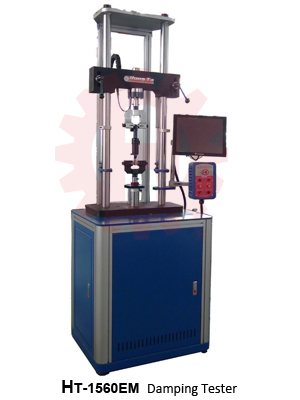

HT-1560EM Damping Tester
 |
|---|
- Specifications
| 1、Capacity：2000 kg 2、Line speed：0.05~2.0 m/sec (stroke by 500 mm) 3、Test stroke (adjustable)：0~100 mm，fixed size：20、30、40、50、75、100、150、200 mm（or as request） 4、Adjusted stroke：MAX. 1000 mm 5、Internal test space：240 × 1000 6、Axle driving system：Servo motor + control system 7、Crosshead up/down hydraulic locking device 8、Grips to be decided by actual sample (optional) 9、Crosshead up/down limit protection 10、Electric control system：crosshead up/down key, home, axle start/stop, test NG、OK key, error, counter, buzzer, emergency stop 11、Computer cabinet for PC, monitor, keyboard, AMP, printer 12、Test program 1 set 13、Hydraulic grip and hydraulic power system 1 set (Grips are optional not included in the offer.) 14、Dimensions：1700 × 1300 × 1750 15、Control box：700 × 900 × 1750 16、Weight ：about 1500 kg |
|---|
